Z120g Galvanized Coil
Galvanized coil, dip a sheet steel plate into a melted zinc tank, so that the surface adhesion of a zinc sheet steel. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously dipped in the melting zinc bath to make galvanized steel plate; Alloyed galvanized steel plate
Phone : +86 15314159176
Email : lx@sdzyesteel.com
Wechat : +86 15314159176
Whatsapp : +86 15314159176
Contact Us
Product Description

Product nameGalvanized Coil
StandardsEN, DIN, JIS, ASTM, etc
GradeDx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570;      SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80 (550), CQ, FS, DDS, EDDS, SQ CR33 (230),  SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550);  Etc.
TypeCoil/plate/strip
Thickness0.12-6.00mm, or according to customer requirements
Width600mm-1500mm, or according to customer requirements
Type of coatingHot dip galvanized Steel (HDGI)
Zinc coating30-275g/m2
Surface treatmentPassivation (C), oiling (O), lacquer sealing (L), phosphating (P), untreated (U)
Surface structure common zinc coating (NS), minimum zinc coating (MS), no zinc coating (FS)
Quality SGS, ISO certification
ParcelStandard export packing.Or according to customer requirements


Galvanized Surface Selection

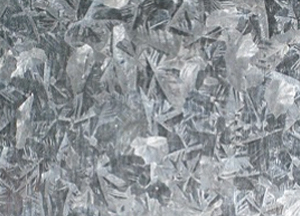

Zero SpangleMinimized SpangleNormal SpangleLarge Spangle



Use of The EnvironmentRecommended Zinc Thickness
Indoor UseZ10 or Z12 (100g/㎡or 120g/㎡)
SuburbsZ20 and Painting (200g/㎡)
Urban or Industrial AreaZ27 (270g/㎡) or G90 (US Standard) and painted
Coastal AreaThicker than Z27 (270g/㎡) or G90 (US Standard) and painted
Punch or Deep Drawing ApplicationThicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping



Surface Treatment TypeCodeFeatures
Chromic Acid TreatmentCGood corrosion resistance, suitable for bare state
Chromic Acid Treatment+OilingSGood corrosion resistance
Phosphoric Acid Treatment (Including Sealing Treatment)PHave a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Including Sealing Treatment)+OilingQHas a certain corrosion resistance, good paint performance, prevent rust during transportation and storage
Phosphoric Acid Treatment (Excluding Sealing Treatment)THave a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Excluding Sealing Treatment)+OilingVHas a certain corrosion resistance, good paint performance, and prevent rust
OilingOPrevent rust during transportation and storage
No TreatmentMSuitable for immediate painting



Material Comparison

Chinese StandardJapan StandardEuropean Standard
DX51D Z/DC51D Z (CR)SGCCDX51D Z
DX52D Z/DC52D ZSGCD1DX52D With
DX53D Z/DC53D Z/DX54D Z/DC54D ZSGCD2/SGCD3DX53D Z/DX54D Z
S220/250/280/320/350/550GD ZSGC340/400/440/490/570S220/250/280/320/350GD Z
DX51D Z/DD51D Z (HR)SGHCDX51D Z
